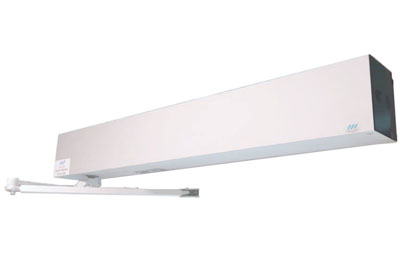

Micom SW800 Model Single Door 39" Header Clear Aluminum Finish Field Reversible
Smart Swing SW800 is a universal non-handed, electro-mechanical swing door operator, which provides powered door opening upon activation. Designed to facilitate barrier free access into and within buildings, through swing doors. SMART SWING SW800 features enable the continuous automation of pedestrian doors, whilst offering Low Energy barrier free access. Designed to achieve the highest degree of safety whilst offering a long service life.
OPERATOR FEATURES
- Adjustable Opening Speed
- Adjustable Back Check Speed & Back Check Position
- Adjustable Closing Speed
- Adjustable Latching Speed & Latching Position
- Adjustable Hold-Open Time
- Reverse on Obstruction
- Optional Push & Go Built in with Separate Adjustable Hold-Open Time
- Fully Adjustable Electronic Door Stop plus Mechanical Stop
- Power to Activate Electric Lock Adjustable 12/24 Volts DC
- Electric Lock Delay to Prevent Door Binding
- Fully Adjustable Power Close
- Wind Control Built in Adjustable Back check
Smart Swing SW800 is a universal non-handed, electro-mechanical swing door operator, which provides powered door opening upon activation.
Designed to facilitate barrier free access into and within buildings, through swing doors.
SMART SWING SW800 features enable the continuous automation of pedestrian doors, whilst offering Low Energy barrier free access. Designed to achieve the highest degree of safety whilst offering a long service life.
During the opening cycle, the spiral spring is tensioned by the rotation of the output shaft. During the closing cycle, the accumulated spring force is released in the closing direction. The spring force can be adjusted so there is appropriate force to close the door when it is operated manually or in case of a power failure.
Specifications
| Micom Handing | Left Hand Push or Right Hand Push or Left Hand Pull or Right Hand Pull |
| Micom Finish | Clear Aluminum or Black |
| Micom Clutch | No - Power Close Function Is Available or Yes - Quieter Operation But Power Close Function Is Not Available |
