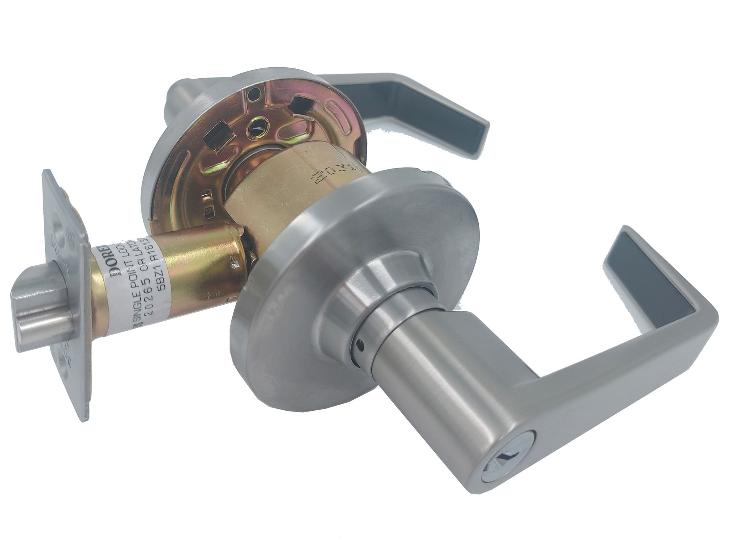

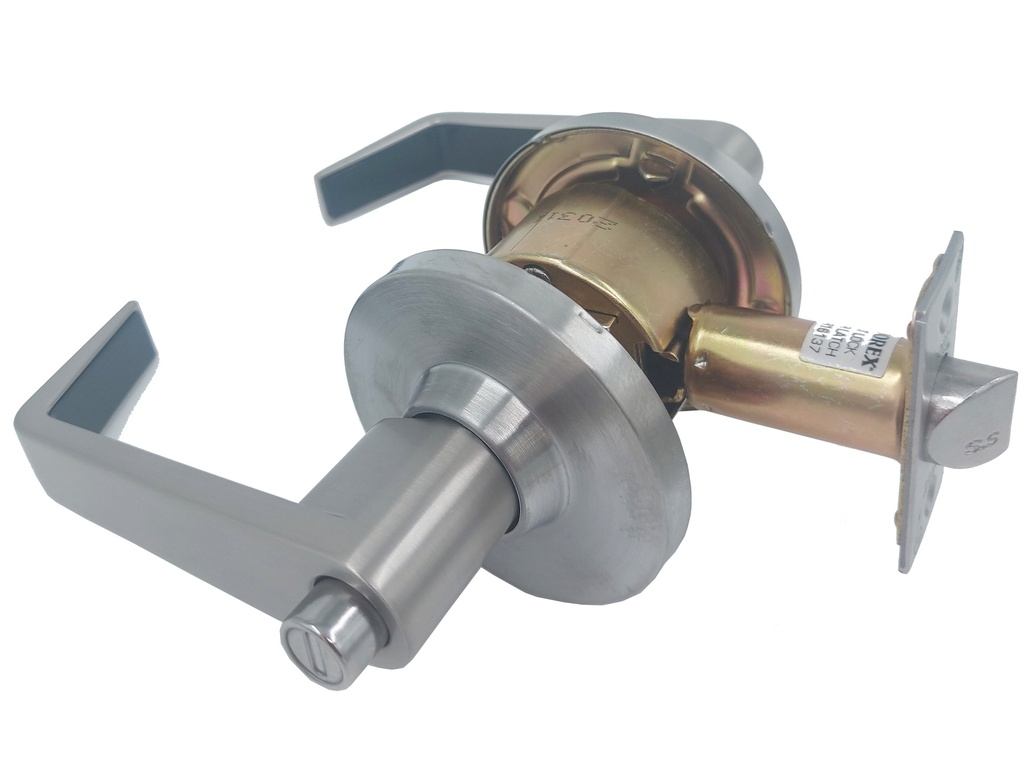

Dorex Entrance Lever Grade 2 Locking Slotted Push Button Satin Nickel

EM52C15

(0 review)

    This combination does not exist.

    Terms and Conditions

    • Conforms to ANSI/BHMA A156.2, series 4000, Grade 2
    • cULus listed, 3 hr fire rating
    • ANSI/UL 10C Positive Pressure Rated
    • Meets ADA requirements (EM lever only)
    • 1 Year limited warranty
    • For doors 138– 134″ (35 – 44.5 mm) thick
    • Non-handed
    • 234″ (70 mm) backset
    • 238″, 334″ and 5″ (60, 95 and 127 mm) backsets available
    • Stainless steel latch with 1/2″ (12.7 mm) throw
    • Removable security posts
    • 3″ (76 mm) rose diameter
    • Concealed mounting plate and screws
    • ASA strike
    • Keyed functions include 6-pin Schlage “C” cylinder with 2 keys

    Full keying services available. Other common and high-security keyways available.

    Product Page

    EM/EL Series 01.026

    Installation instructions

    EM/EL – Installation Instructions

    Templates & Door Preparations

    EM/EL – A156W-161 Wood Door Preparation (64 mm posts)
    EM/EL – A156-161 Door Preparation (64 mm posts)
