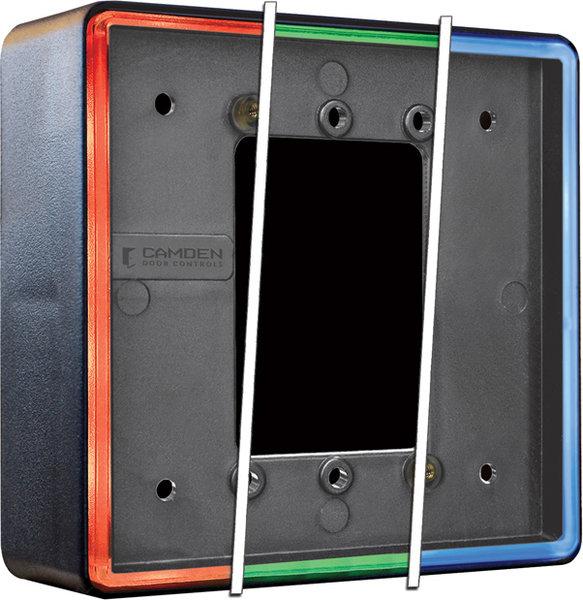

Camden CM-54i Flush Mount Illuminated Push Plate Enclosures

CM-54-I

(0 review)

CM-55 (flush square) illuminated push plate enclosures and switch kits provide high visibility and enhanced user convenience in ADA compliant automatic door and other applications.

    This combination does not exist.

    Terms and Conditions

    • Illuminated surface and flush mount box compatible with any CM-40, CM-45 or CM-46 'All Active' push plate switch
    • Red/Green and Red/Green/Blue models available
    • High efficiency LED technology
    • Improves switch visibilty, even in daylight
    • Flame and impact resistant polycarbonate construction
    • Selectable 12/24V AC/DC
    Voltage: 12 or 24V AC/DC
    Current Draw: CM-54i/CM-55i: 130 mA.
    CM-54GR: 110 mA.
    Lumina: Blue: 1500 MCD,
    Red: 5760 MCD, Green: 3780 MCD
    Contact Type: CM-54i/CM055i/CM-57GR: 1 SPDT Form 'C'
    Contact Rating: 3 A @ 30 VDC
    Sounder: 85 DB
    Dimensions: CM-54: 5-1/4" x 5-1/4" x 2-1/8"
    (133mm x 133mm x 54mm)
    CM-55: 6-1/2" x 6-1/2" x 2"
    (165mm x 165mm x 51mm)
    CM-57: 6-5/8" Dia. x 2"
    (168mm x 51mm)
    Spec Sheets
    CM-54i-55i & 57GR_Spec Sheet_R5pdf0.70
    Manuals
    CM-54i-Manual_R3pdf0.35
    CM-55i_Manual_R3pdf0.35
    CM-55i_Templatepdf0.10
    CM-57GR_Manual_R1pdf0.53
    CM-57GR_Templatepdf0.10
    Reference Guides
    Guide To OBC Compliant Push Plate Switches_R2pdf0.90
    Guide To OBC Compliant Push Plate Switches_French_R2pdf0.90
