Akuvox Door Station Intercom with 7" Display

R29C

https://mysecurity.odoo.com/web/image/product.template/148156/image_1920?unique=1ca93ad

    This combination does not exist.

    Terms and Conditions

    R29

    World's First Facial Recognition Android Doorphone

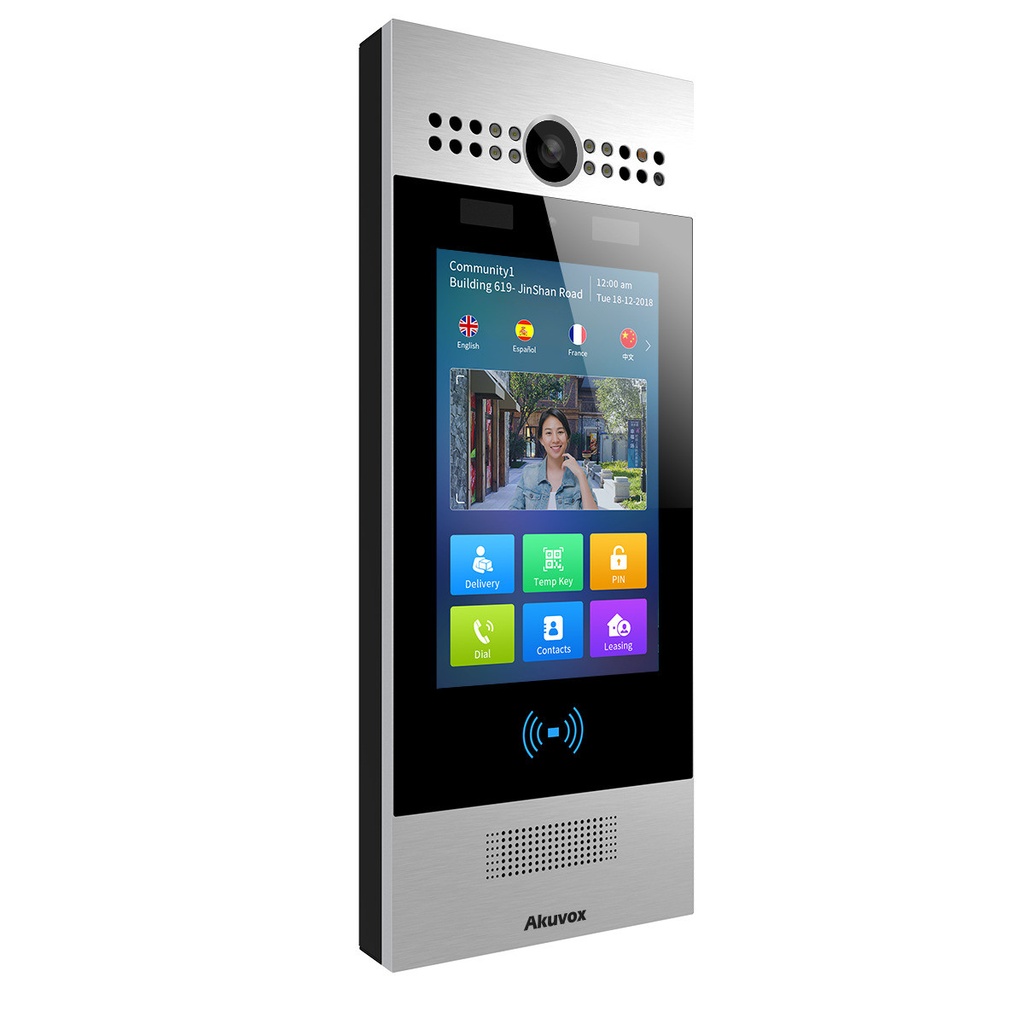

    Akuvox R29 is a SIP video doorphone with a 7” touch screen, which performs AI-powered offline facial recognition for door access. It is typically used in apartment buildings, high-rise office buildings and building complexes.







    Specification

    ·         At a Glance

    Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises;

    Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries;

    Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%;

    Allows both audio and video communication to an IP phone, mobile client, or softphone;

    Enables the ability to remotely control the door/gate;

    Presents information and user navigation options unique to your business;

    Speeds response time to visitors, delivery and service personnel that require access;


    ·         Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)

    Narrowband audio codec: G.711a, G.711μ, G.729

    Broadband audio codec: G.722

    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

    Echo Cancellation

    Voice Activation Detection

    Comfort Noise Generator

    ·         Door Entry Feature

    Android OS for any 3rd-party software or customization

    Relays controlled individually by DTMF tones

    Multi-way Unlock: Face, IC/ID Card, PIN and BLE

    Camera permanently operational

    Auto-night mode with LED illumination

    White balance: auto

    Minimum illumination: 0.1LUX

    ·         Deployment & Maintenance

    Auto-Provisioning

    Web management portal

    Web-based packet dump

    Configuration backup / restore

    Entry log export

    Access table export / import

    Firmware upgrade

    System logs (include door access logs)

    ·         Application Scenario

    Office door phone with on-site or hosted IP-PBX

    Remote site entry over Internet

    Apartment/flat intercom with door access control

    Business information or a welcome experience for guests

    ·         Physical & Power

    Front panel: Aluminum

    RAM / ROM: 2GB / 16GB

    Display: 7 Inch IPS LCD

    Screen: 7 Inch capacitive touch screen

    Main Camera: 2M pixels, automatic lighting

    Auxiliary Camera: 1M pixels

    Light sensor: Support

    Infrared sensor: Support

    Wiegand port: Support

    RS485 port: Support

    RF card reader: 13.56MHz & 125kHz

    Relays ln/out: 3/3

    Microphone: -32dB

    Speaker: 8Ω / 2W

    Bluetooth: Support

    Ethernet port: RJ45, 10/100Mbps adaptive

    802.3at Power-over-Ethernet

    IP/IK Level: IP65/ IK06

    Installation: Flush-mounted & Wall-mounted

    Flush-mounted DIM: 324x130x60mm

    Wall-mounted DIM: 324x130x33mm

    Working Humidity: 10-90%

    Working Temperature: -20°C - +55°C

    Storage Temperature: -40°C - +70°C

    ·         Video

    Sensor: 1/2.8", CMOS

    Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

    Video codec: H.264

    Video resolution: up to 1920x1080p

    Max. image transfer rate: 1080p - 25fps

    Viewing angle: 105(H)/55°(V)

    High intensity IR LEDs for picture lighting during dark hours with internal light sensor

    White LEDs for QR code scanning

    Compatible to 3rd-party video components,

    ·         Networking and Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

    ·         Door Entry Feature

    Android OS for any 3rd-party software or customization

    Relays controlled individually by DTMF tones

    Multi-way Unlock: Face, IC/ID Card, PIN and BLE

    Camera permanently operational

    Auto-night mode with LED illumination

    White balance: auto

    Minimum illumination: 0.1LUX
