Product Overview

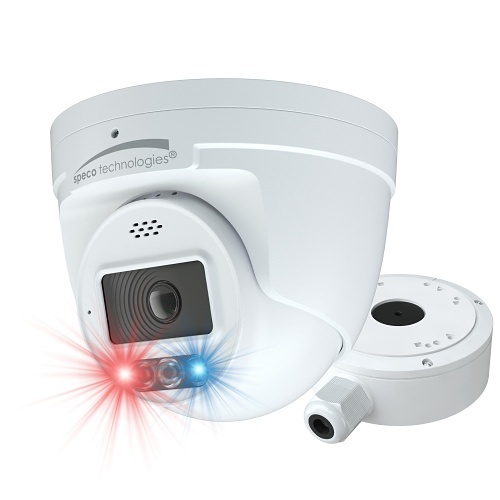

The Speco O4TDD2M is a 4MP outdoor turret IP camera featuring built-in audio and visual deterrent capabilities. Built-in high-power red and blue strobe lights combined with a speaker — supporting preset and custom audio alerts — actively discourage intrusions before they escalate, making it a proactive security tool rather than a passive recorder.

Equipped with a 2.8 — 12mm motorized varifocal lens (F1.4), the camera delivers 4MP resolution at 30fps with a 96° horizontal field of view at full wide angle. True 120dB WDR and a minimum illumination of 0.02 lux ensure sharp footage in high-contrast and low-light conditions, with combined White LED and IR illumination reaching up to 164ft (50m).

Two-way audio via built-in microphone and speaker enables real-time communication. Onboard AI analytics include face, person, and vehicle detection, intrusion detection, and line crossing with counting. Rated IP66 with an operating range of -40°C to +60°C. Supports ONVIF Profile G/S/T, PoE (IEEE 802.3af), and includes a junction box. NDAA compliant. 5-year warranty.

Key Features
  • ✓  Audio & Visual Deterrent - red/blue strobe lights + built-in speaker with preset/custom alerts
  • ✓  4MP Resolution - 2592 x 1520 @ 30fps, 1/3" CMOS sensor
  • ✓  2.8 — 12mm Motorized Varifocal - remote zoom and focus, F1.4 aperture
  • ✓  White LED + IR up to 164ft (50m) - 0 lux night visibility
  • ✓  True 120dB WDR - sharp detail in high-contrast scenes
  • ✓  Two-Way Audio - built-in mic and speaker
  • ✓  AI Analytics - face, person & vehicle detection, intrusion detection, line crossing with counting
  • ✓  Alarm I/O - 1 input / 1 output
  • ✓  Micro SD up to 256GB - onboard edge storage
  • ✓  IP66 Weatherproof - -40°C to +60°C operation
  • ✓  PoE IEEE 802.3af - single-cable power and data
  • ✓  NDAA Compliant - junction box included, 5-year warranty
Specifications
VIDEO
Image Sensor1/3" Progressive Scan CMOS
Resolution2592 x 1520 (4MP)
Lens2.8 — 12mm Motorized Varifocal, F1.4
Field of View (Wide)96°H / 53.47°V / 114°D
Field of View (Tele)32.3°H / 19.6°V / 36°D
Minimum Illumination0.02 lux (colour, F1.4 AGC on) / 0 lux (LED on)
Illumination Range50m / 164ft (White LED + IR, Smart IR)
Dynamic RangeTrue WDR 120dB
NETWORK
Video CompressionH.265+ / H.265 / H.264+ / H.264 / MJPEG
Max Frame Rate30fps @ 2592 x 1520
Camera ProtocolONVIF Profile G/S/T
Ethernet1x RJ-45 (10/100 Base-T)
Edge StorageMicro SD up to 256GB
ALARM, AUDIO & ANALYTICS
AudioBuilt-in microphone and speaker, two-way audio, 3.5mm audio input
Alarm In / Out1 In / 1 Out
Visual DeterrentBuilt-in high-power red/blue strobe LEDs
Audio DeterrentPreset and custom audio alerts via built-in speaker
AI AnalyticsFace, Person & Vehicle Detection, Intrusion Detection, Line Crossing with Counting
ENVIRONMENTAL & MECHANICAL
Weather ProtectionIP66
Operating Temperature-40°C to +60°C
Operating Humidity0% to 95% (non-condensing)
Power12VDC / PoE IEEE 802.3af (12W max)
Dimensions129 x 110mm (5.1" x 4.3")
IncludedJunction Box
ComplianceFCC, ONVIF Profile G/S/T, NDAA Compliant, 5-Year Warranty
Resources & Downloads

 O4TDD02M Spec Sheet ​ ​ O4TDD02M Quick Start Guide ​ ​ O4TDD02M User Guide
