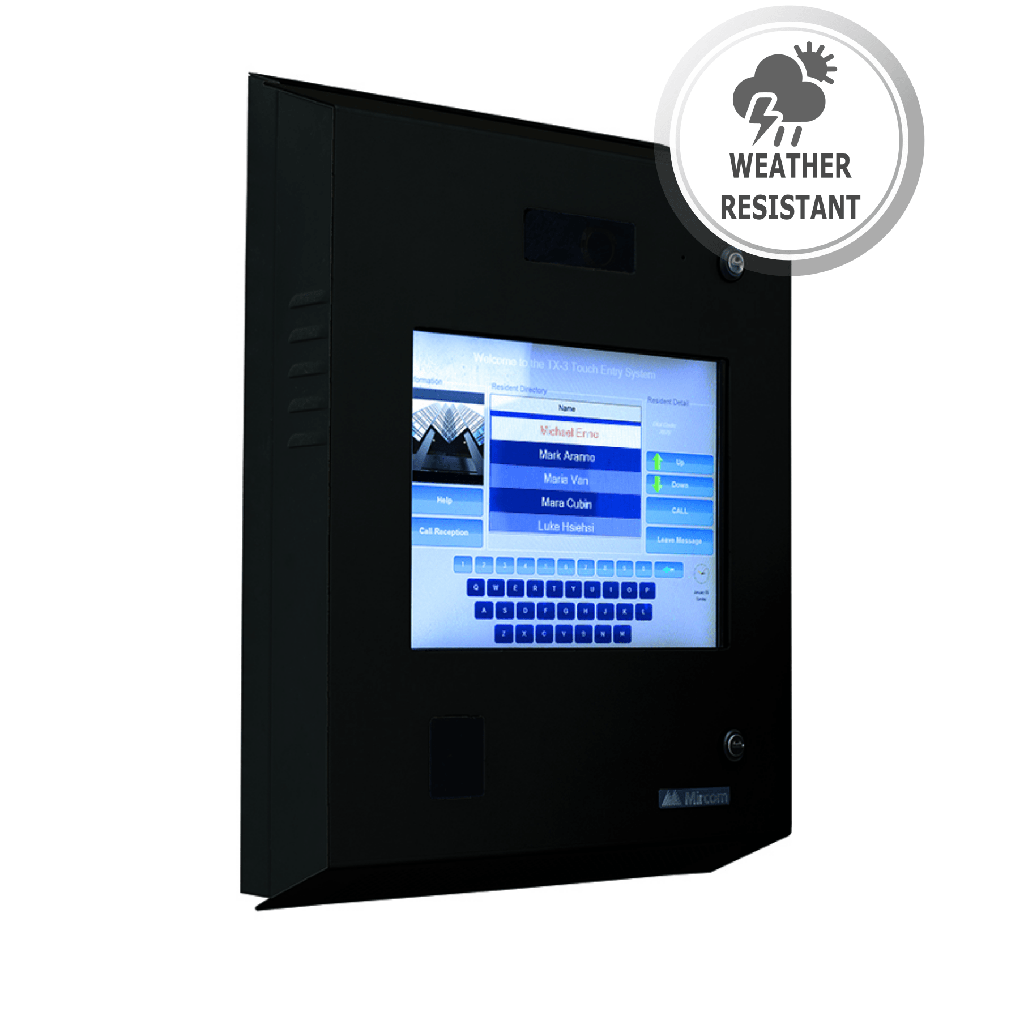

Mircom TX3-TOUCH-S15B-WR

(0 review)

15″ Black surface mount weather & vandal resistant touch screen voice entry panel for both outdoor and indoor wall mount applications.

    This combination does not exist.

    Terms and Conditions

    The TX3-Touch Series weather resistant unit is used for outdoor/indoor wall mount applications. The unit has a stylish face-plate designed to blend with virtually any lobby décor.

    Mircom’s TX3-Touch Series Telephone Access Systems are the most advanced visitor management and security systems available on the market today.

    The TX3-Touch Series weather resistant unit is designed to provide primary resident/visitor access control for condominiums, apartment buildings, office buildings and industrial buildings. The large touch screen display in combination with a vandal and weather resistant enclosure is the perfect solution for a stand alone or an integrated access control system.

    The TX3-Touch Series unit allows building residents to communicate with visitors and grant or deny entry into a complex in multiple different ways –

    • Video calls with the MiEntry application and Mircom provided SIP (VoIP) service
    • Easy to reach the resident’s cell/land phone with PSTN phone line
    • No monthly bills using NSL (non subscribers line)
    • Email residents using touch screen display

    The touch screen works under any weather condition – rain, snow and even when the user is wearing gloves. The touch display can be fully customized to display residential or commercial building directory listings as well as promotional or site-specific information. In addition, the TX3-Touch Series has a built-in camera, proximity reader and provision for a postal lock (using external housing), card access controller (TX3-CX-1NP) and elevator restriction.

    The TX3-Touch Series weather resistant unit is constructed of a weather and vandal resistant display and enclosure. The unit can withstand high external impacts for many years. The TX3-Touch Series user interface is built on top of the Intel Atom architecture running a reliable and proven Windows-based operating system to offer the most feature rich system on the market. For ADC/NSL telephone interconnectivity, the system uses Mircom’s reliable interface modules sold to thousands of buildings around the world for over 25 years.

    Vandal resistant enclosure to endure high external impact

    1600 nits high brightness display

    15” color anti-glare, industrial grade, 6.4mm thick glass touch screen display

    Touch screen works under any weather condition – rain, snow and even when the user is wearing gloves

    Two locks for added security

    Bottom firing speaker is perfect for outdoor application

    Built-in TCP/IP capability for remote programming

    Built-in HD camera, and built-in proximity card reader for easy integration to access control panels

    Provision to add optional HD IP camera and postal lock (using external housing)

    Native integration with Access Control and Elevator Restriction units

    Multiple panels (unlimited using TCP/IP or up to 63 using RS-485) can be connected to a shared database

    Four fully configurable themes (color & font), 4 pre-set themes, and 4 screen layout templates

    Includes four built-in keyboard layouts (Full QWERTY, Full QWERTY + Num pad, Simple, or Accessible)

    Provision for a single door controller module for access control integration

    Intuitive interface with the option to add up to 7 categories for the resident database

    Voice or video-based help menu for ease of use

    Built-in e-mail resident feature

    Supports Auto Dialer (PSTN), No Phone Bill (NSL), and Voice over IP (SIP)

    Recurring revenue opportunities using the optional advertising module

    Easily load media content via built-in USB or TCP/IP interface. Supports JPG, GIF, SWF, WMV and MPEG file formats

    Industry Canada approved
