Product Overview

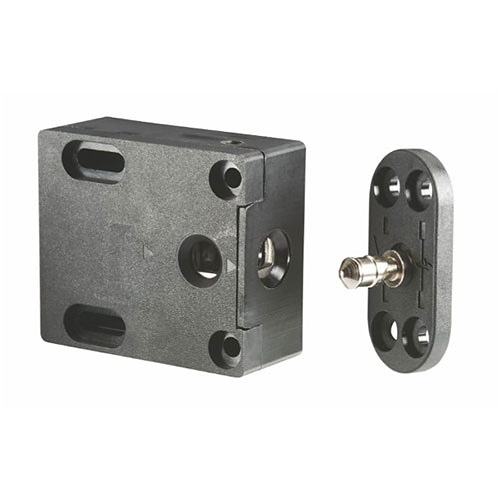

The HES 610 cabinet lock is a versatile, compact and cost effective cabinet lock for wood or glass cabinets. The 610 cabinet lock can be triggered by a simple relay as part of an access control system or with a standalone keypad. The HES 610 is available in monitored and unmonitored versions. Typical uses include retail and office space.

Electrical

• 12/24 VAC/VDC field selectable
• Monitoried contact rating 25V / 1A
• 12 - 24 VDC +/- 10%
• 12VDC 260mA or 24VDC 130mA
• 12VAC 140mA or 24VAC 70mA

Standard Features

• Fail safe / fail secure (field selectable)
• Holding force: 200 lbs.
• Compact design filts most drawers and cabinets
• Versatile installation either at the side or front of cabinets
• 610LM option includes locked state monitoring
• SecuriCare three-year, no-fault, no questions asked warranty

Main Features

Monitoried contact rating 25V / 1A

12/24V AC/V DC field selectable

Compact design fits most drawers and cabinets

Fail safe / fail secure (field selectable)

1-year limited warranty

12VDC 260mA or 24VDC 130mA

12VAC or 140mA 24VAC 70mA

Holding force: 200 lbs.

Versatile installation either at the side or front of cabinets

610LM option includes locked state monitoring
