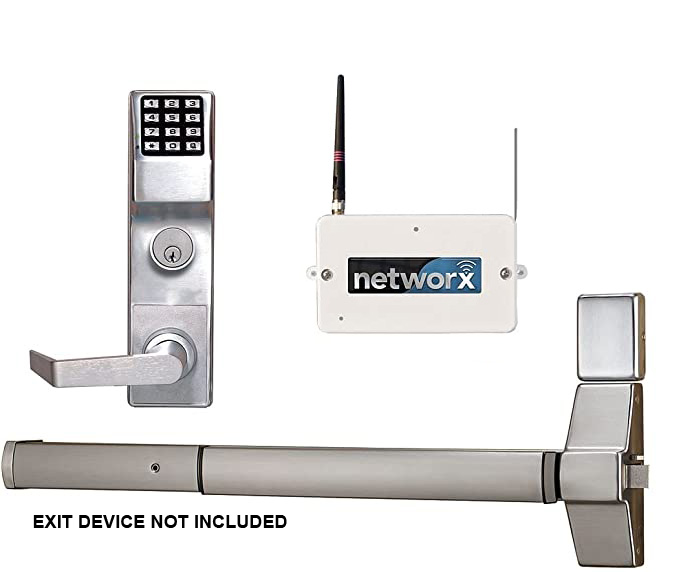

Alarm Lock Trilogy Keypad Lock for Von Duprin 99 Exit Device

ETDLNS1G/26DV99

(0 review)

Add Trilogy convenience, programming, flexibility and audit trail to panic exit mortise locks from most major manufacturers

    This combination does not exist.

    Terms and Conditions

    • Free Software Included
    • Clutch mechanism insures long life and durability

    • Fingertip and/or Windows Programmable

    • 2000 User Codes: Master, manager, supervisor and users

    • Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail

    • Up to 500 Lock/Unlock Schedules (with Time Zone Support)

    • Rugged 12-Button Metal Keypad

    • Non-Handed; Fully Field Reversible

    • Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders

    • Battery operated; uses 5 AA batteries

    Also available in prox model for added convenience and security. Includes all of the features above plus:

    • Accepts most HID Proximity cards and keyfobs

    • Users are individually programmed to use a card only, code only, or for highest security – both card and code

    • Prox card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-WINDOWS software.

    • In an hour, add dependable wireless access control, one door at a time—easily retrofit standard knobsets
    • Support 100 to 2000 PIN codes (3-5 or 6 digits); some with built-in HID prox readers for use with access ID cards/fobs
    • Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes, too
    • All are fingertip programmable at vandalproof all-metal keypad
    • PC programmable models also feature printable audit trail, auto-lock/unlock scheduling saving guard/manpower costs
    • Long-life battery operation (cylindrical models use 5AA off-the-shelf batteries); low battery alert
    • Key override, standard core (supplied) or interchangeable core prep
    • Non-handed cylindrical models
    • Programmable relay functions
    • Durable BHMA Grade 1 Lockset
    • Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
    • Curved Regal handle option
    • 5 Architectural finishes (US3 polished brass, 26 polished chrome, 26D satin chrome, 5 antique brass, 10B duronodic)
    Spec Sheets
    Networx Expanded Wireless Network Lock Line Specs (ALA529)
    pdf
    ETDLN, ETPDLN Installation Instructions and Template For Von Duprin Model 99pdf
