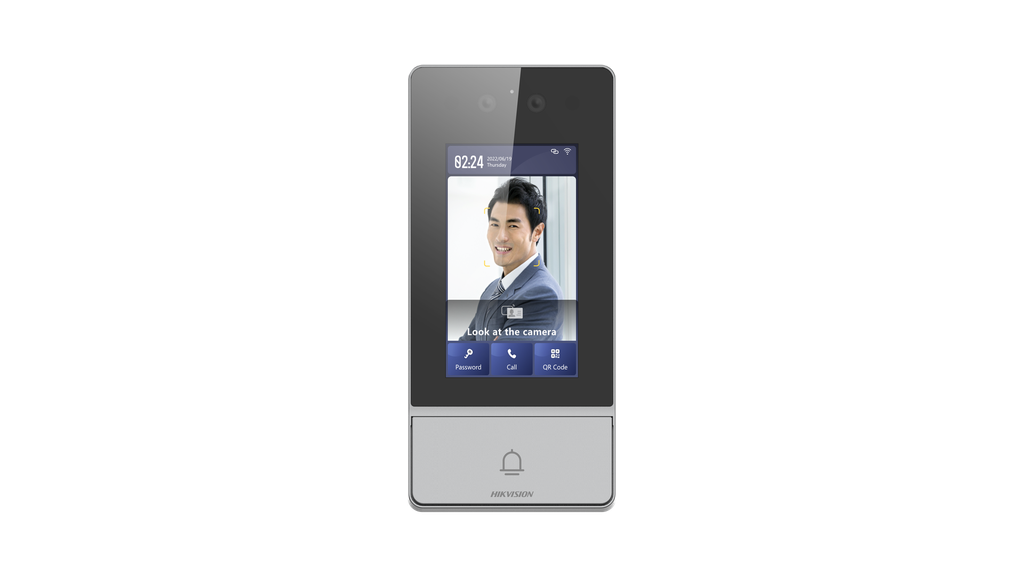

Metal Vandal-resistant Facial Recognition IP Villa Door Station

• 4.3-inch colorful LCD screen with 800 × 480 resolution
• 2 × 2 MP camera with IR supplement
• One-touch physical button for easier calls
• Standard PoE power supply
• IK08 & IP65 higher protection level
• Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth
• Call directly to Hik-Connect APP without indoor station

System parameters

• Operation system - Linux
• ROM - 4 GB
• RAM - 1 GB
• Processor - Embedded high performance processor

Display parameters

• Screen size - 4.3-inch
• Operation method - Capacitive touch screen
• Type - IPS
• Resolution - 800 × 480
• Luminance - 425 cd/m²

Video parameters

• Lens2
• Resolution2 × 2 MP
• FOV - Horizontal: 88°, Vertical: 44°
• Wide dynamic range (WDR)Support 120 dB
• Supplement light - IR light, up to 3 m
• Video compression standard
  Main stream and sub stream: H.264
  Third stream: H.265

Audio parameters

• Audio input - 1 built-in omnidirectional microphone
• Audio compression standard - G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
• Audio output - 1 built-in loudspeaker
• Audio compression bitrate - G.711u、G.711a、Opus：64kbps；G.722.1、G.726：32kbps；AAC-LD、AAC-LC：16kbps
• Audio quality - Noise suppression and echo cancellation
• Volume adjustment  - Adjustable

Capacity

• User capacity - 20000
• Face capacity - 10000
• Card capacity - 100000
• Linked indoor station capacity - 500
• Sub door station capacity -  16

Network parameters

• Network protocol - TCP/IP, RTSP
• Wi-FiI - EEE802.11b, IEEE802.11g, IEEE802.11n
• BluetoothSupport：2.0
• 3G/4G/

Authentication

• Card reading frequency - 13.56 MHz
• Face recognition distance - 0.3 to 2 m
• Face recognition accuracy rate - ≥ 99%
• Face recognition duration - ＜ 0.2 s per person

Device interfaces

• Alarm input - 4 (2 exit buttons and 2 door contacts by default)
• Network interface - 1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER - 1
• Exit button - 2
• RS-485 - 1
• TF card - Reserved
• Lock control
  2 relays, Max. 30 VDC 2 A,
  lock 2 needs secure module
• Door contact input - 2

General

• Button - 1 physical button
• Installation - Surface mounting
• Net weight: 0.405 kg
  Gross weight: 0.752 kg
• Protective level - IP65, IK08
• Working temperature - -40 °C to 60 °C (-40 °F to 140 °F)
• Working humidity - 10% to 90% (no-condensing)
• Dimension -  (W × H × D)182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
• Power supply - 12 VDC, 1.5 A,IEEE802.3af, Standard PoE
• Application environment - Outdoor
• Power consumption - ≤ 6 W
• Language - English,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
