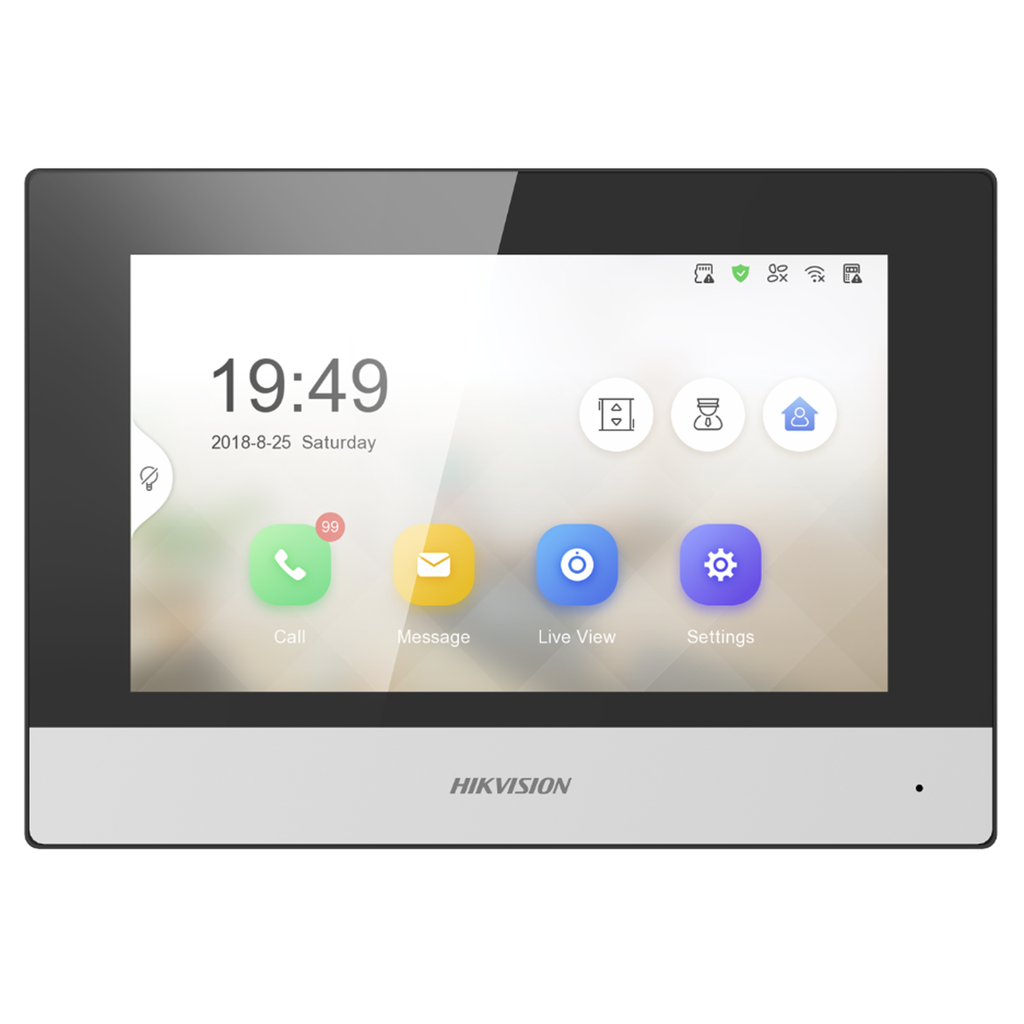

• 7-inch TFT touch screen with 1024 × 600 resolution
• Convenient Hik-Connect APP Mobile Control
• Receive calls, open the door and live view remotely
• Easy to use without PC
• Easy wizard for quick set up
• Configure the whole system on one touch screen
• Live view of the door station and cameras in public areas
• Support voice messages when no response from the indoor station
• Receive alarms by linkage with a alarm system and notify the center to handle in time

System parameters

• Operation system - Linux
• ROM - 32 MB
• RAM - 128 MB
• Processor - Embedded high performance processor

Display parameters

• Screen size - 7-inch
• Operation method - Capacitive touch screen
• Type - Colorful TFT
• Resolution - 1024 × 600

Audio parameters

• Audio input - 1 built-in omnidirectional microphone
• Audio compression standard - G.711 U、G.711 A、G.722.1
• Audio output - 1 built-in loudspeaker
• Audio compression bitrate - 64 Kbps
• Audio quality - Noise suppression and echo cancellation
• Volume adjustment - Adjustable

Capacity

• Message capacity
  TF card inser
  ted: 200 captured pictures, 200 alarm records
  Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
• Notice capacity - 200
• Linked indoor extensions capacity - 16
• Linked doorphone capacity - 17
• Linked network camera capacity - 16

Network parameters

• Network protocol - TCP/IP, SIP, RTSP
• Wi-Fi - 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n

Device interfaces

• Alarm input - 8
• Network interface - 1 RJ-45 10/100 Mbps self-adaptive
• RS-4851 RS-485 (Half duplex)
• TF card - Support TF card, up to 128 G
• Alarm output - 2
• Lock control - 2 relays, Max. 30 VDC 0.3 A

General

• Installation - Surface mounting
• Net weight: 355 g (0.8 lb)
  Gross weight: 683 g (1.5 lb)
• Working temperature        -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity      10% to 90% (no-condensing)
• Dimension (W × H × D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Application environment - Indoor
• Power consumption - ≤ 5 W
• Language - English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
