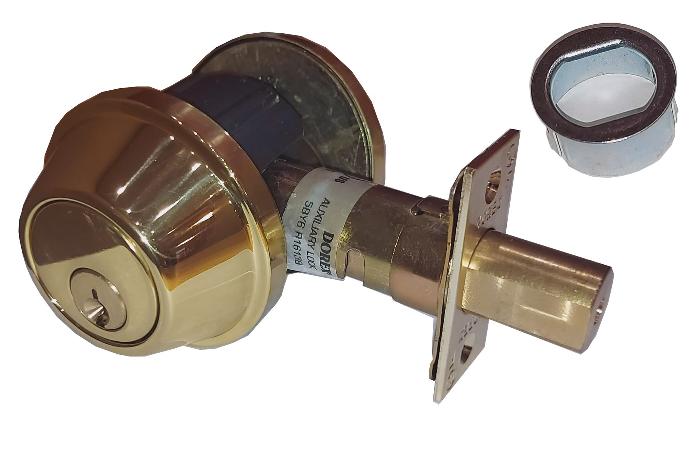

Dorex TLA51C3WEI Single Cylinder Brass 4 Way Bolt Deadbolt w/ Weiser Keyway

TLA51C3WEI-U

(0 review)

    This combination does not exist.

    Terms and Conditions

    • Conforms to ANSI/BHMA A156.5, Grade 2
    • cULus listed, 3 hour fire-rating*
    • 1 Year limited warranty
    • For doors 138″ to 134″ (35 to 44.5 mm) thick
    • Kit available for doors 214″ (57 mm) thick
    • Non-handed
    • 234″ (70 mm) backset
    • 238″ and 5″ (60 mm and 127 mm) backsets available
    • Adjustable 238″ or 234″ (60 mm or 70 mm) backset available
    • Solid brass deadbolt with security pin, 1″ (25.4 mm) throw
    • Free-spinning cylinder collar for enhanced security
    • Fits 112 –218″ (38–54 mm) door preparations
    • Strike and dust-box
    • 6-pin cylinder in steel housing, Schlage “C” keyway with 2 keys
    • Small format interchangeable core (SFIC) model available (BEST-F® and CX5® cores sold separately)
    • Privacy model with exterior indicator available

    Full keying services available. Other common and high security keyways available.

    (*)Except for privacy model.


    Product Page

    TLA Series 01.054

    Installation Instructions

    TLA42I – Indicator Deadbolt Instructions
    TLA51-60-70 – Installation Instructions
    TLA51IC – Supplemental instructions
    TLA70 – Supplemental instructions

    Disclaimer
    • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
    • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
    • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
    • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
    • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
