Now get convenient keyless PIN code or Prox access anywhere there’s a glass door with Trilogy Weather Proof Access Keypads.

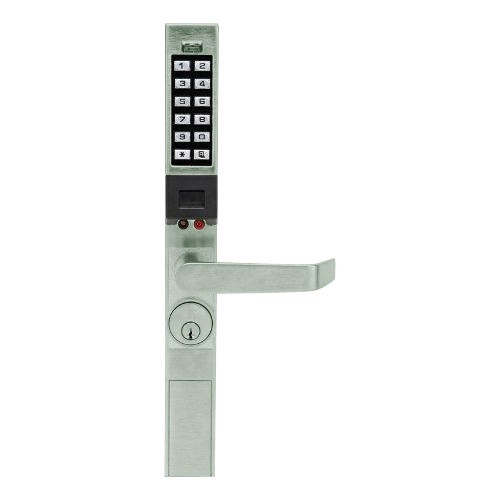

Trilogy Narrow Stile lever models (left and right) designed to work with Adams Rite® latch series; Thumbturn models (shown at center) support swing & hook bolt products.

Plus, PC-programmable 1300 Series models provide audit trail log of keyless entry door users.

Pushbutton aluminum door trim retrofit glass doors with latch locks

Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks

Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button keypad

DL1200 supports 100 3-6 digit PIN user codes

Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)

Long-life, battery- operated for 100,000 and 80,000 cycles respectively, typ.on 2 lithium 3V batteries, supplied; low battery alert

Compact styling 14-3/8"H x 1-5/8”D x 1-3/4"W

Key override mortise cylinder, 1-1/4” supplied. (Supports 1-1/8", 1-1/4" and 1-3/8"). Also interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)

Backsets 31/32",1-1/8" and 1-1/2"; Stile thickness 1-3/4"

Non-handed; fully field-reversible

Four finishes US26D satin chrome, US10B duronodic, MS metallic silver and MB metallic bronze

NOTE: Must use DL1225/DL1250 with Adams Rite™, 1850, 1950 as it requires more than 85 degrees of rotation
