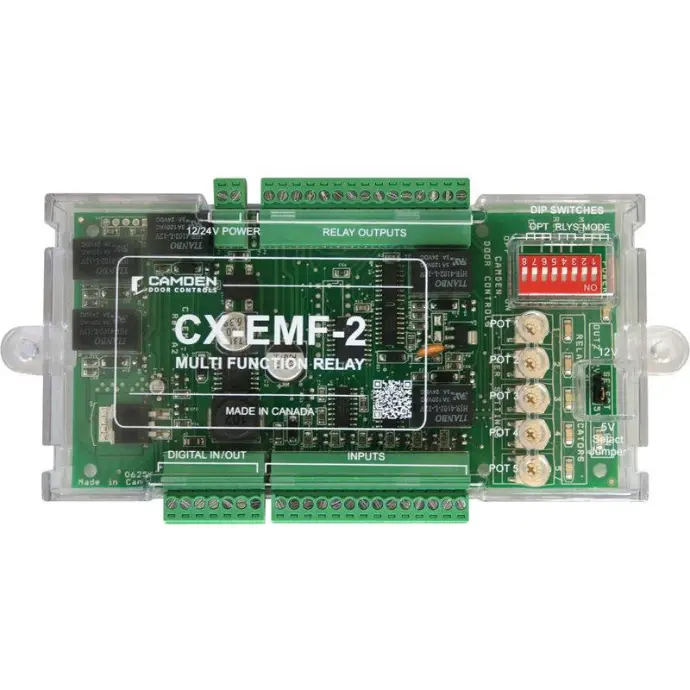

Camden Multi-function relay - Plastic enclosure

CX-EMF-2

(0 review)

EMF-2 is Camden's most sophisticated door control relay and is designed to easily and quickly support a variety of specialized door-control applications. A dedicated 12V/5V LED output suitable for an illuminated "Occupied" sign is also provided. Also available in secure lockable metal cabinet versions (EMF-2M or EMF-2ABM) suitable for wall mounting.

    This combination does not exist.

    Terms and Conditions

    Applications: Advanced automatic door and security control including ATM Vestibule Control (Banks), two-door unsecured washroom in shared-use facility, 2 or 3 door Airlock (with auto-crossing), 2 to 5 door Airlock and 2 door Mantrap. Used where 'Assistance Required' input/output required in restroom applications.

    • Microprocessor control
    • 3 mode selector switch
    • 5 adjustable timers, 1-30 seconds each
    • LEDs for visual confirmation
    • May be used on normally locked and normally unlocked restroom doors
    • 12/24V AC/DC
    • Plug-In connectors facilitate wiring
    • SPDT contacts rated 3 amps @ 30 VDC
    • 7 dry inputs
    • Use with fail-safe and fail-secure locks
    • Enclosed plastic case or mounted in metal enclosure
    • 3 year warranty


    Voltage: 12/24V AC/DC
    Current Draw: 150 mA Nominal, 500 mA Maximum
    Response Time: .3 Seconds
    Input: 7 Dry Momentary Contacts and 1 Digital
    Output: 5 x Form 'C' (SPDT), 1 Digital Output
    Contact Rating: 3 A @ 30 VDC
    Electrical Life: 500,000 Operations @ 1/2 rated Capacity
    Time Delay: 5 Pots adjustable from 1-30 Seconds
    Dimensions: CX-EMF-2:
    6-7/8"L x 2-7/8"W x 7/8"D
    (173mm x 72mm x 22mm)
    CX-EMF-2M/2ABM:
    12"L x 7-1/2"W x 3-3/4"D
    (305mm x 190mm x 95mm)
    Mounting: CX-EMF-2: Double Sided Foam Tape
    CX-EMF-2M/2ABM: 4 x #8 Metal Screws
    Enclosure: CX-EMF-2: Gray Plastic Case
    CX-EMF-2M/2ABM: Beige Metal Cabinet
