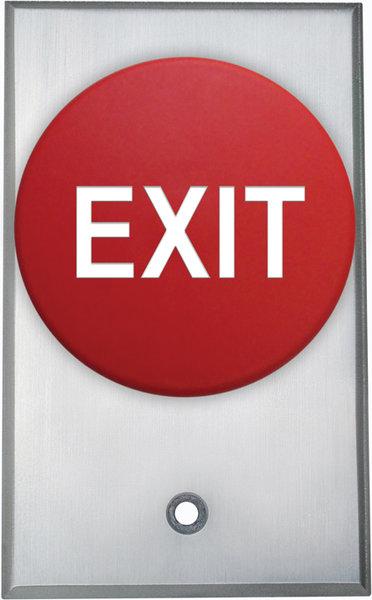

Camden Mushroom Red Exit Switch Spring Return, N/O & N/C, Momentary

CM-5020-RE

(0 review)

CM-5000 Series heavy duty mushroom push buttons are specially designed and manufactured to meet the stringent demands of high traffic exit control applications. Buttons are 2-3/8" (60mm) diameter and available in either green, red or blue. Switches feature 1/4" thick brushed aluminum single gang faceplates.

    This combination does not exist.

    Terms and Conditions

    • Large palm button (red, blue or green)
    • Vandal and tamper resistant
    • Indoor or outdoor applications
    • Large engraved symbols or words
    • Spring return, push/pull, or push/turn to release operation
    • Available with integrated 1-60 sec pneumatic time delay
    • Color coded 18 AWG spade connections
    • 3 year warranty with '2 for 1' replacement

    Voltage:

    12/24 VDC

    Contact Type:

    SPDT and DPST models

    Switch Type:

    Momentary / Maintained / Push-Pull / Push-Turn

    Current Rating:

    6 A @ 30 VDC

    Temp Range:

    -13°F to 158°F (-25°C to 75°C)

    Switch Life:

    100,000 cycles

    Dimensions:

    4-1/2" x 2-3/4" x 1-3/4"
    (114mm x 40mm x 44mm)

    Std. Finish:

    Brushed Aluminum

    Spec Sheets
    CM-4000-5000-7000-8000_Spec Sheet_R4pdf0.59
    CM-5000_Spec Sheet_R2pdf0.54
    Reference Guides
    Push Button Switch_Cross Referencepdf0.15
    Manuals
    CM-5000_Manualpdf0.41
    CM-4085-5085_Manualpdf0.52
