  2. Camden 1-5/8" Mushroom Push Button, 'Push to Lock' text

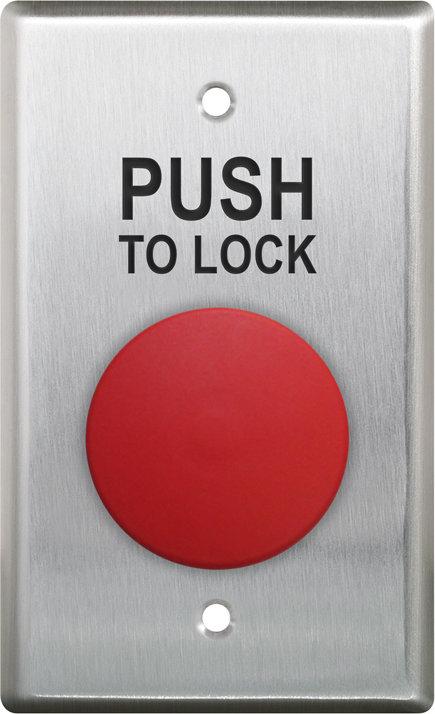

Camden 1-5/8" Mushroom Push Button, 'Push to Lock' text

CM-400R/8

https://mysecurity.odoo.com/web/image/product.template/76413/image_1920?unique=210c6d2

CM-400 Series mushroom push buttons are available in red, blue, or green (other colors on request), with a 1-5/8" (40mm) diameter. To protect against vandalism, the buttons are free-spinning. They are supplied with an industrial grade 18 gauge stainless steel faceplate.

    This combination does not exist.

    Contact Us

    Terms and Conditions

    • 1-5/8" (40mm) diameter button
    • Vandal resistant free-spinning, heavy-duty button
    • Vandal resistant 18 gauge stainless steel faceplate
    • Single gang, double gang and narrow faceplates
    • 3 year warranty with '2 for 1' replacement
    Voltage: 12/24 VDC
    Contact Rating: 6 A @ 30 VDC
    Switch Type: Momentary
    Dimensions: CM-400:
    4-1/2"H x 2-3/4"W x 1-3/4"D
    (114mm x 70mm x 44mm)
    CM-400N:
    4-1/2"H x 1-3/4"W x 1-3/4"D
    (114mm x 44mm x 44mm)
    CM-400W:
    4-1/2"H x 4-1/2"W x 1-3/4"D
    (114mm x 114mm x 44mm)
    Std. Finish: US32 / C32D
    Manuals
    CM-400_Manual_R2pdf0.54
    CM-450RL-7724-CPC_Manualpdf0.47
    Spec Sheets
    CM-400_Spec Sheet_R7pdf0.67
    Reference Guides
    Push Button Switch_Cross Referencepdf0.15
