Product Overview

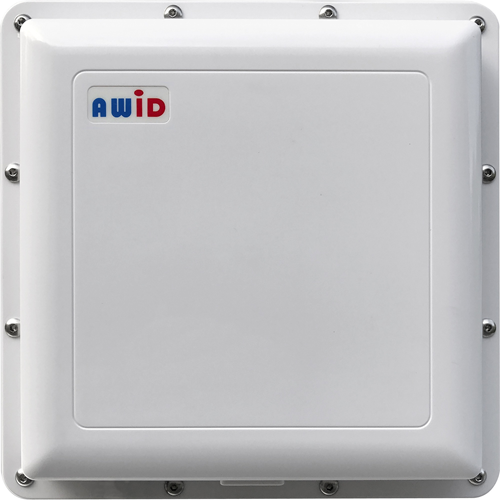

The AWID LR-3000 is an Ultra High Frequency (UHF) long-range reader designed for hands-free automatic vehicle identification (AVI) and access control applications. With a read range of up to 25 feet, the LR-3000 combines a reader and patch antenna in a single compact, IP65-rated weatherproof enclosure suitable for both indoor and outdoor installations. AWID proprietary encryption secures all communication between the reader and its passive UHF credentials.
Key Features
- ✓ Up to 25 ft hands-free UHF read range
- ✓ Passive RFID technology — no battery required in tags
- ✓ IP65-rated weatherproof enclosure — indoor/outdoor
- ✓ Simultaneous Wiegand & RS-232 output
- ✓ Integrated RHCP patch antenna — compact all-in-one design
- ✓ AWID proprietary encryption
- ✓ Programmable read repetition rate (one-shot or continuous)
- ✓ FCC certified, 902–928 MHz FHSS
- ✓ LED indicators: power (red) and credential read (green)
- ✓ Ideal for parking, gate control, elevator, and hospital access
Specifications
| RF | |
| Frequency | 902–928 MHz (FHSS) |
| RF Output Power | 1W (30 dBm) |
| Read Range | Up to 25 feet |
| Antenna | Integrated RHCP Patch Antenna |
| Interfaces | |
| Data Output | Wiegand & RS-232 (simultaneous) |
| LED Indicators | Red (power), Green (credential read) |
| Power | |
| Input Voltage | 7–15V DC (12–13.8V nominal) |
| Current Draw | 2.0A minimum / 3.0A nominal |
| Physical | |
| Dimensions | 9.8" x 9.8" x 1.3" |
| Weight | 2.00 lbs |
| Enclosure Rating | IP65 |
| Installation | Indoor / Outdoor surface mount |
| Compliance | |
| Certifications | FCC, RoHS |
| Warranty | 1 Year |
