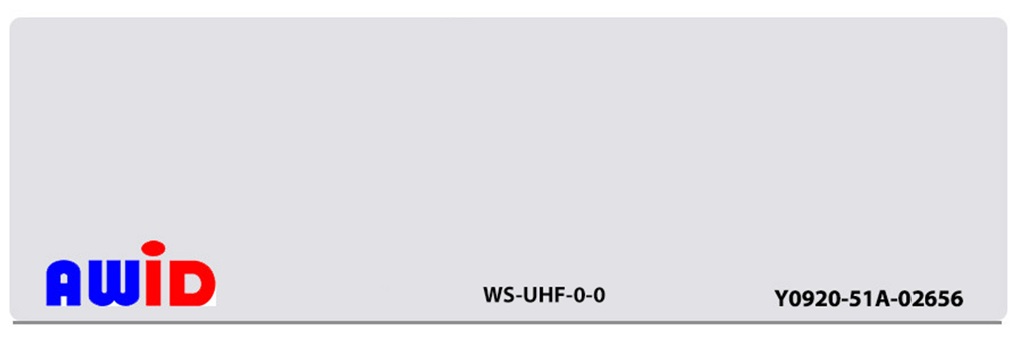

Product Overview
The AWID WS-UHF is a passive UHF windshield sticker tag designed for hands-free vehicle access control. Compatible with AWID LR-2000, LR-2200, and LR-3000 long-range readers, it adheres to the inside of a vehicle windshield and provides read ranges up to 25 feet. The tag is tamper-evident — the circuit is printed on flexible clear plastic and will rip apart if removed, making it a permanent one-time vehicle assignment credential.
Key Features
- ✓ Up to 25 ft read range with compatible AWID UHF readers
- ✓ Passive RFID — no battery required
- ✓ Tamper-evident — rips apart if removed
- ✓ Semi-permanent adhesive backing — inside windshield mount
- ✓ Circuit printed on flexible clear plastic
- ✓ 26-bit Wiegand format (other formats available on request)
- ✓ Compatible with AWID LR-2000, LR-2200, LR-3000
- ✓ Smaller than a business card — out of driver's line of sight
- ✓ Custom facility code and tag number available at order
Specifications
| RF | |
| Frequency | UHF |
| Read Range | Up to 25 feet |
| Data Format | 26-bit Wiegand (custom formats available) |
| Physical | |
| Width | 4 inches |
| Height | 1-1/16 inches |
| Thickness | 1/32 inch |
| Construction | Flexible clear plastic, semi-permanent adhesive |
| Compatibility | |
| Compatible Readers | AWID LR-2000, LR-2200, LR-3000 |
| Minimum Order | 50 tags |
