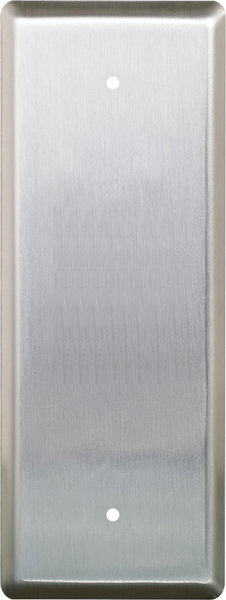

Camden CM-25 Narrow Push Plate Switch Vertical Mounting
Specialty finishes are available as a custom order. Options include Satin Brass, Oil Rub Bronze, Polished Brass, and Antique Brass. To order a specialty finish, please reach out for pricing and availability.
Product images reflect the logo that will appear on the switch, and are not guaranteed to be the same size shown in the images above.
FEATURES
- CM-25 & CM-26CB: 4-1/2” x 1-3/4” (114mm x 44mm) faceplate, mounts in aluminum jamb or in surface boxes
- CM-35: 4-1/2" x 2" (114mm x 50.8mm) faceplate, conforms to new OBC requirements and mounts on single gang box
- Durable stainless steel construction
- All-Active design requires minimal actuation force
- Meets ADA requirements
- Ultra quiet operation
- Permanent debossed or laser engraved graphics
- 3 year warranty with '2 for 1' replacement
SPECIFICATIONS
| Voltage: | 12/24V AC/DC |
| Contact Type: | N/O SPST |
| Switch Type: | Momentary |
| Contact Rating: | 3 A @ 30 VDC |
| Temp Range: | -40°F to 140°F (-40°C to +60°C) |
| Dimensions: | CM-25 & CM-26CB: 4-3/16" x 1-3/4" x 1-3/16" (113mm x 44mm x 30mm) CM-35: 4-1/2"x 2-3/4" x 1-3/16" (114mm x 70mm x 30mm) |
| Std. Finish: | US32 / C32D |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Camden Faceplate Options | /1 - Blank or /2 - Wheelchair or /A2 - Active Wheelchair or /2AL - Wheelchair / Arrow Left or /2AR - Wheelchair / Arrow Right or /3 - Push To Open or /3F - Poussez Pour Ouvrir or /4 - Wheelchair / Push To Open or /4AL - Wheelchair / Push To Open / Arrow Left or /4AR - Wheelchair / Push To Open / Arrow Right or A4/ - Active Wheelchair / Push To Open or /4F - Wheelchair / Poussez Pour Ouvrir or /8 - Push To Lock or /8B Lock Symbol / Push To Lock |
| Camden Weatherproof Options | None or WT Boot and Water Tight Coating |
| Camden Kinetic Wireless | No or Yes |
