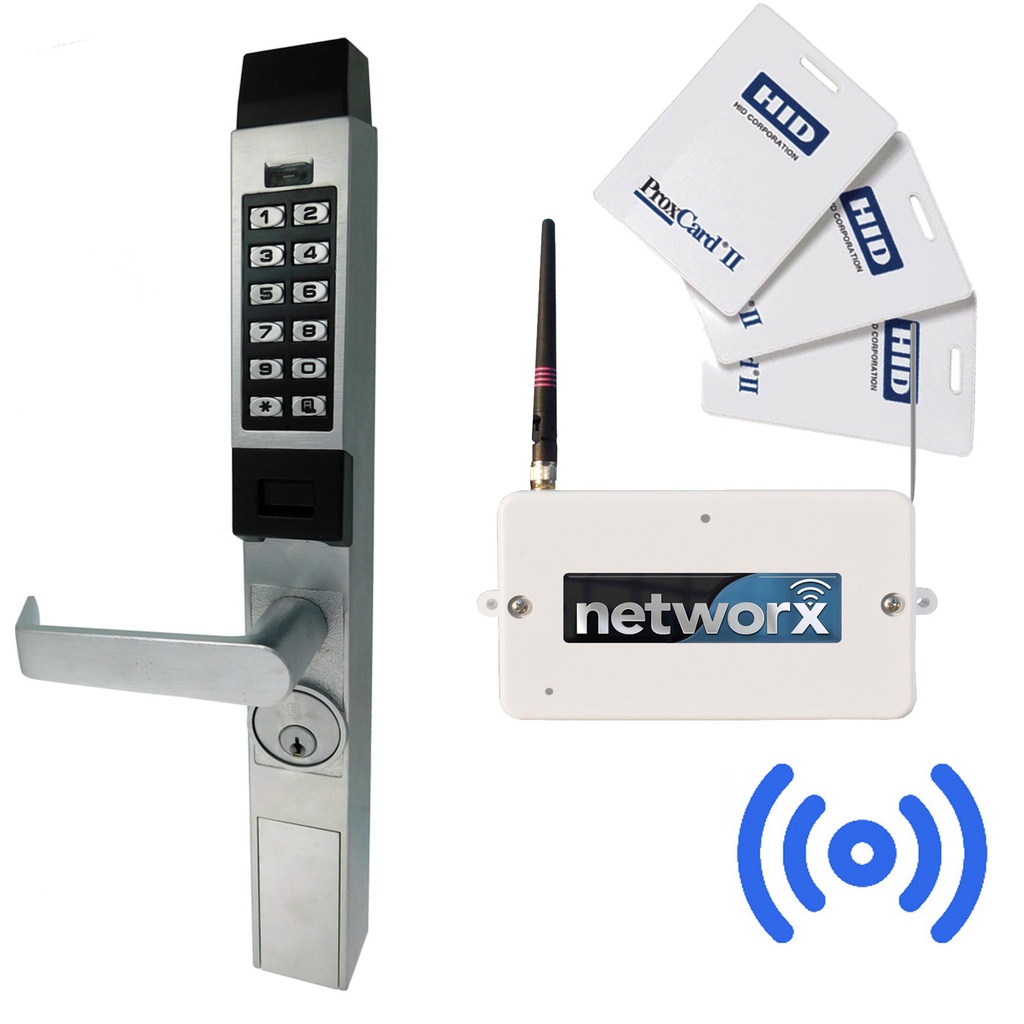

Alarm Lock PDL1300 Networx Narrow Stile Wireless Access Proximity & Keypad Lock Trim

(0 review)

Trilogy® Networx® Narrow Stile Wireless Access Prox/Digital Lock Trim: PDL1300NW

  • Alarm Lock FINISH

This combination does not exist.

Terms and Conditions

Get field-proven Trilogy® keyless access lock convenience anywhere there's a glass door with wireless Trilogy Narrow Stile Networx® lock trim from Alarm Lock. Weatherproof, all-metal and vandal resistant, they offer automatic lock or free passage schedules to Adams Rite® latch lock applications, remote keyfob support and emergency global lockdown in seconds. Trilogy Networx locks communicate wirelessly via gateways and have an unsurpassed battery life.P/DL1300NW

 Wireless Access Lock Trim adds Keyless Convenience and automatic Lock- or Free-Passage schedules to Adams Rite Latch Lock Applications

 Field-Proven, familiar Trilogy® keyless access lock convenience, programming & electronics

 PIN code and PIN/Prox Models support up to 5000 users

 Trilogy Networx Locks communicate wirelessly via Gateways to Ethernet or 802.11B/G for a comprehensive wireless networked door access control system, eliminating door to door programming

 Networked to save manpower - On demand in seconds or automatically on a set schedule, wirelessly change/update users, schedules, lock features or retrieve time-/date-stamped audit trails, up to 35,000 events/locks from any networked PC

 Remote Keyfob Support for unlock, locking or Global Lockdown activation

 Activate emergency global lockdown in seconds from the Networx PC, Networx lock or keyfob

 Saves equipment costs - Choice of Networx Gateways support 63 locks, each and multiple Gateways can be used for 2016 Locks, max. per system

 HID Prox ID cards, keyfobs and prox tags; plus AL-ID Cards, supported in PDL1300NW Series models featuring built in reader. (High security applications can require use of both PIN code plus Prox ID for access.)

 Proven, Low Maintenance, Wireless Installation and Unsurpassed Battery-Life with Advanced Power-Saver circuits, for years of use in even high-traffic areas, powered by 4 off-the-shelf AA Batteries; 3 to 4 years or 100,000 cycles, typ.

 Flexible System Monitoring, Control & Programming – Program locally using a USB Gateway or remotely across a wireless network (using free Alarm Lock DL-WINDOWS Windows- based software)

 Wide weatherproof operating range from -31 to 151ºF (-35 to 66C)

 Key override; Mortise Cylinder, 1 1/4", supplied

 Compact styling 15 13/32"H x 1 5/8"D x 1 3/4

Spec Sheets
Networx Narrowstile Spec Sheet
Networx Expanded Wireless Network Lock Line Specs (ALA529)
PDL1300NW Programming Instructions.pdf
DL1200ETNW, DL1300ETNW & PDL1300ETNW Mounting and Installation Instructions


Alarm Lock FINISH Satin Chrome 26D or Oil Rubbed Bronze 10B (SPECIAL ORDER)
