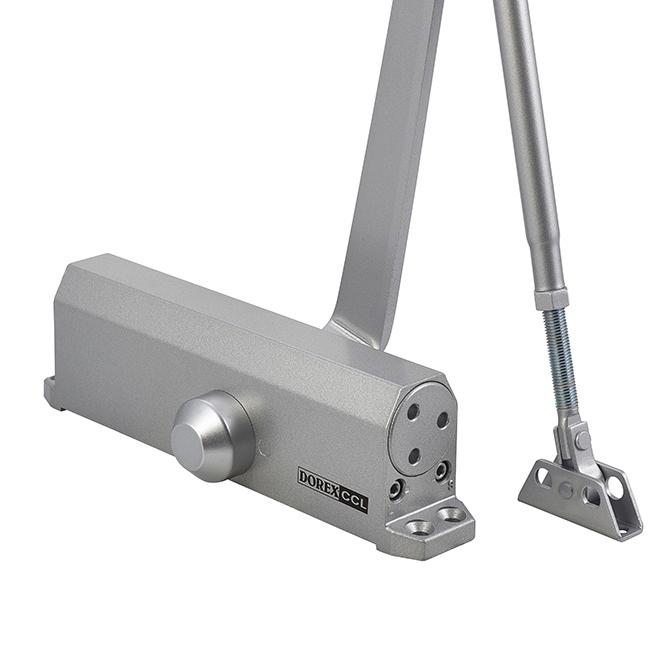

Dorex 5400BC size 2-5, Backcheck Door Closer – Aluminum

• Surface door closer for high traffic storefront applications
• Conforms to ANSI/BHMA A156.4 Grade 1
• cULus listed
• Barrier free model meets ADA requirements
• 10 Year limited warranty

• Adjustable power size 2–5 (preset 3)
• Non-handed
• Cast aluminum alloy body
• Hydraulic rack & pinion mechanism
• Non-gumming, non-freezing hydraulic fluid
• Operates between 49º to -35º C (120º to -30º F)
• 180° maximum opening
• Adjustable sweep and latching speeds
• Adjustable cushioning backcheck
• Regular or top-jamb mounting
• Fixed power sizes 3, 4, and 5 available
• Barrier free model with adjustable power size 1–4 (preset 2) and delayed action available (no backcheck) available [ADA]
• Parallel arm bracket available
• Low-profile cover available
• Various door closer arms available
• Drop plates available

Product Page

 CCL 5400 – 03.020

Instructions

CCL 5400 – Installation Instructions
CCL 5403/5404/5405 – Installation Instructions
CCL 5400CSA – Installation Instructions
CCL 5400ARMF – Installation Instructions

Disclaimer

• We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
• All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
• We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
• Do not exceed the maximum weight or dimensions recommended by the manufacturer.
• All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
