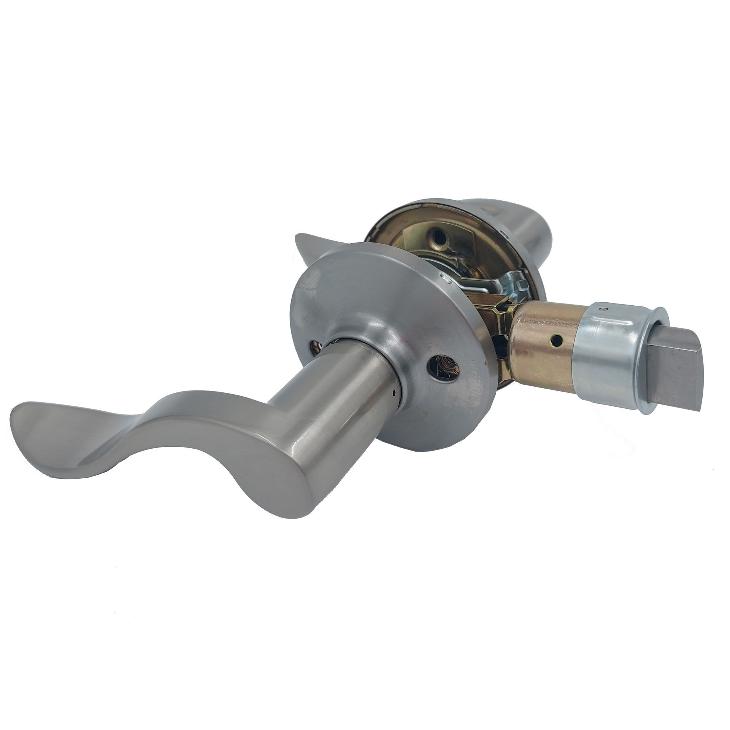

Dorex Athena Passage Lever Lefthand Satin Nickel
- 20 minute fire-rating available with listed fire-can*
- For doors 13⁄8 to 13⁄4″ (35 to 45 mm) thick
- Adjustable 23⁄8″ or 23⁄4″ (60 mm or 70 mm) backset
- 5″ (127 mm) backset available
- Stainless steel spring latch, available 4-Way or Universal type
- Privacy function with auto-release
- Full lip strike with 1⁄4″ (6.4 mm) radius corners
- Entry model includes 5-pin cylinder, Weiser keyway with 2 keys
Keying services available. Other common keyways available.
(*)Fire-can must be ordered in conjuction with lockset
Signature 100 – Installation Instructions
Templates & Door Preparation
Residential Door Preparation – 70 mm
- We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
- All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
- We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
- Do not exceed the maximum weight or dimensions recommended by the manufacturer.
- All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
