  2. Camden 1-5/8" Blue Pushbutton, Aluminum Faceplate Spring Return, N/O & N/C, Momentary (ADA)

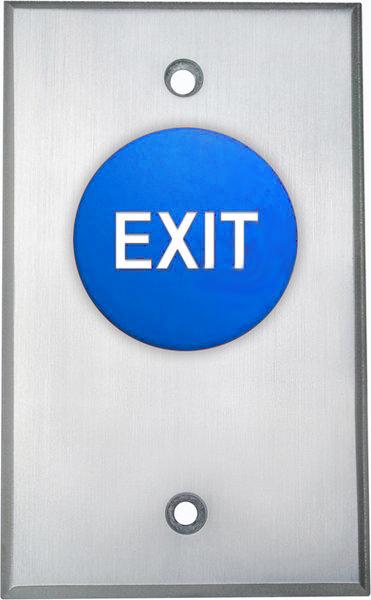

Camden 1-5/8" Blue Pushbutton, Aluminum Faceplate Spring Return, N/O & N/C, Momentary (ADA)

CM-4020BE

https://mysecurity.odoo.com/web/image/product.template/76392/image_1920?unique=7016958
(0 review)

CM-4000 series mushroom push buttons feature large 1-5/8" (40mm), free-spinning buttons that are easy-to-activate.

This combination does not exist.

Contact Us

Terms and Conditions

  • Indoor and outdoor applications
  • Red, green, or blue mushroom button
  • Large, paint filled engraved symbols or words on button
  • 1/4" thick aluminum faceplate and HD button are vandal and tamper resistant
  • 3 year warranty with '2 for 1' replacement
Voltage: 12-24 VDC
Contact Type: SPST and DPST models
Switch Type: Momentary / Maintained / Push-Pull / Push-Turn
Current Rating: 6 A @ 30 VDC
Temp Range: -13°F to 158°F (-25°C to 75°C)
Switch Life: 100,000 cycles
Dimensions: CM-4000: 4-1/2" x 2-3/4" x 1-3/4"
(114mm x 40mm x 44mm)
CM-4000: 4-1/2" x 1-3/4" x 1-3/4"
(114mm x 44mm x 44mm)
Std. Finish: Brushed Aluminum
Spec Sheets
CM-4000-4100_Spec Sheet_R3pdf0.56
CM-4000-5000-7000-8000_Spec Sheet_R4pdf0.59
Reference Guides
Push Button Switch_Cross Referencepdf0.15
Manuals
CM-4000_Manualpdf0.45
CM-4085-5085_Manualpdf0.52
