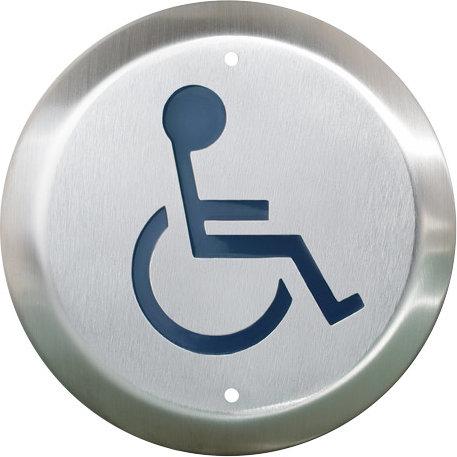

Camden 4½" Round Push Plate Switch Wheelchair Logo

CM-40/2

https://mysecurity.odoo.com/web/image/product.template/76422/image_1920?unique=803d504

    This combination does not exist.

    Terms and Conditions

     ADA CompliantUL Listed Switch Components

    CM-40, CM-41 and CM-60 Series 'All-Active' push plate switches are heavy-duty, ADA-compliant door controls. Faceplates are stainless steel or solid brass, and the assembly is designed for easy installation. The CM-41 4-1/2" square stainless steel backplate is large enough to dress-up (cover) a poorly installed electrical box. It will also fit perfectly on most 4-1/2" surface boxes.

    CAMDEN PUSH PLATE SWITCHES NOW INCLUDE 'WR'  WATER RESISTANCE AS STANDARD!

    • 4 stud switch design and rubber dampers for quieter operation
    • Durable stainless steel or brass construction
    • All-Active design requires minimal actuation force
    • Large variety of graphics options
    • Available in a range of architectural finishes
    • 3 year warranty with '2 for 1' replacement
    Voltage: 12/24V AC/DC
    Switch Type: Momentary
    Contact Type: SPDT Form 'C'
    Contact Rating: 15 A @ 30 VDC
    Mounting: CM-40/41: Single Gang
    CM-60: Single or Double Gang or 4 x 4
    Std. Finish: US32 / 630
    Dimensions: CM-40: 4-1/2" x 1-3/4"
    (114mm x 44mm)
    CM-45: 4-1/2" x 4-1/2" x 1-3/4"
    (114mm x 114mm x 44mm)
    CM-60: 6" x 1-1/8"
    (152mm x 28.6mm)










    Spec Sheets
    CM-40-41_Spec Sheet_R8pdf0.55

    CM-60_Spec Sheet_R6pdf0.49

    Reference Guides
    Push Plate Switch Cross Referencepdf0.16

    Push Button Switch Cross Referencepdf0.15

    OBC Compliant Push Plate Switches_R2pdf0.90

    OBC Compliant Push Plate Switches_French_R2pdf0.90
