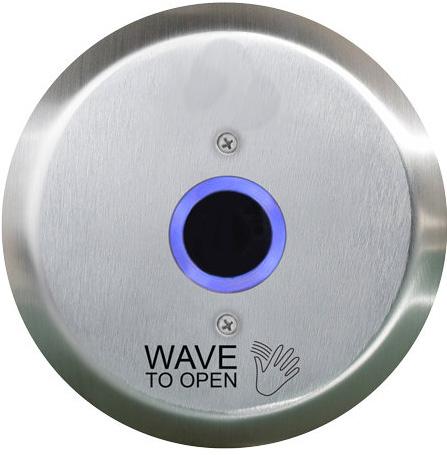

Camden CM-331/41 SureWave™ Touchless Switch – Single Relay
CM-331/41
Camden CM-331/41 SureWave™ is a touchless infrared switch with single relay output, designed for hygienic door activation in commercial access control systems.
The Camden CM-331/41 SureWave™ is a touchless activation switch designed for hygienic and reliable door control in commercial environments. Using infrared sensing technology, this hands-free device allows users to activate doors without physical contact, making it ideal for healthcare facilities, offices, retail spaces, schools, and other high-traffic areas.
The CM-331/41 features a single relay output (1 Form C), allowing seamless integration with automatic door operators, electric strikes, magnetic locks, and access control systems. Its durable design ensures dependable performance in demanding environments while maintaining a clean, modern appearance.
The touchless operation enhances accessibility compliance and reduces the spread of germs, making it particularly suitable for medical and public environments where hygiene is a priority.
Key Features:
• SureWave™ infrared touchless activation
• Single relay (1 Form C) output
• Compatible with door operators and access control systems
• Ideal for healthcare and high-traffic environments
• Enhances hygiene and accessibility
• Commercial-grade construction
The Camden CM-331/41 SureWave™ Touchless Switch provides safe, convenient, and reliable door activation for professional installations.
- Wired, wireless and hybrid (wirless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- CM-333 Series: Hybrid battery powered models offer 2 year battery life using standard 'AA' alkaline batteries
- CM-336 Series: battery powered wireless models offer industry-leading 4 year battery life using standard 'AA' alkaline batteries
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and and double gang faceplates
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
- Adjustable operating range up to 28", refer to model specification
- CM-331/332 Series: Selectable auto range (operation) mode of up to 6"
- Adjustable time delay, refer to model specifcation
- Selectable fail safe/fail secure operation
- CM-331/332 Series: Active output for external alrm, LED or annunciator
- CM-332/333/336 Series: 'Request to exit' and external door contact inputs
- CM-331/332 Series: Optional red/blue/green LED light ring with single gang stainless steel faceplate, indicates switch or door status
| Technology: | Active Infra-red, utilizing microburst sensing technology |
| Voltage: | 12-24V AC/DC |
| Contact Type: | CM-331/333/324/325: (1) SPDT Form 'C' CM-332: (2) SPDT Form 'C' |
| Contact Rating: | CM-331/332/333: 3 Amps @ 30 V CM-324/325: 5 Amps @ 30 V |
| Current Draw: | CM-331/332: 40 mA CM-324/325: 60 mA |
| Wireless: | CM-336: Built-In CM-331/332: Optional Plug-In |
| Wireless Frequency: | CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless |
| Battery: | CM-333/336: (2) 'AA' alkaline -0ºF to +153º F (-18ºC to +85º C) (2) 'AA' Lithium Batteries (optional) -4ºF to +153º F (-20ºC to +85º C) |
| Battery Life: | CM-336: Alkaline: 4 years with 100 activations per dayAlkaline: 2 years with 100 activations per day |
| Adjustable Operating Range: | CM-331/332: 1"- 28" (25mm-711mm) CM-333/336: 1"-12" (25mm-304mm) CM-324: 1"-30" (25.4mm-762mm) CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror |
| Time Delay: | CM-331/332/333/336: 3-30 Seconds CM-324/325: 1-5 Seconds |
| Operation: | Selectable Fail Safe/Fail Secure |
| Montion Sensing Modes: | CM-331/332/333/336: Momentary, Momentary with Alarm, Maintained CM-324/325: Momentary |
| Relay Operating Modes: | CM-332: Event, Sequence, Security, Toggle CM-331: Event, Toggle CM-333/336/324/325: Event |
| Input: | CM-331/332/333/336: REX, Door Contact |
| Blue/Green/Red Light Ring: | CM-331/332: Optional |
