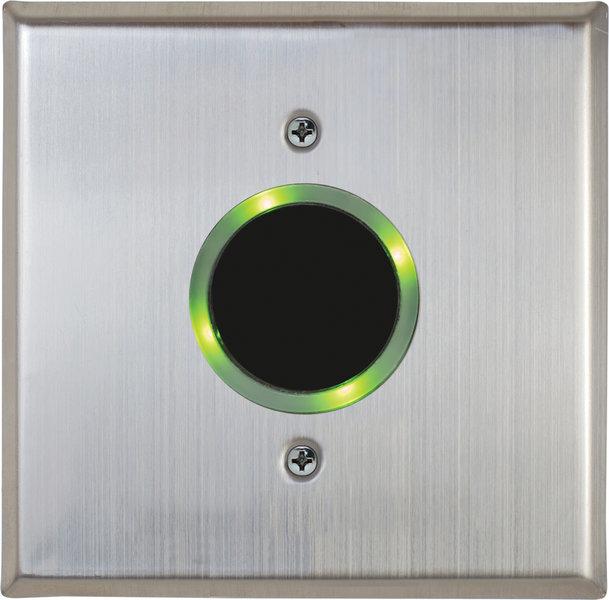

Camden CM-325/42SW Short Range Hands-Free Switch – Stainless Steel
CM-325/42SW
Camden CM-325/42SW is a short-range stainless steel hands-free switch designed for hygienic and accessible automatic door activation in commercial environments.
The Camden CM-325/42SW is a short-range hands-free activation switch designed for hygienic and accessible door control in commercial environments. Featuring infrared sensing technology, this device allows users to activate automatic doors without physical contact, reducing touchpoints and improving infection control in high-traffic areas.
Constructed with a durable stainless steel faceplate, the CM-325/42SW is built for long-term performance in demanding environments such as healthcare facilities, schools, offices, retail spaces, and public buildings. The short-range sensing helps prevent unintended activations while maintaining easy, convenient operation.
This model includes accessibility icons for hand and wheelchair activation, making it suitable for ADA-compliant door automation systems. It integrates seamlessly with automatic door operators and access control systems.
Key Features:
• Short-range infrared hands-free activation
• Durable stainless steel faceplate
• Hand and wheelchair accessibility icons
• Designed for automatic door systems
• Reduces physical contact at entry points
• Suitable for commercial and institutional use
The Camden CM-325/42SW provides reliable, hygienic, and accessible door activation for professional installations.
| Technology: | Active Infra-red, utilizing microburst sensing technology |
| Voltage: | 12-24V AC/DC |
| Contact Type: | CM-331/333/324/325: (1) SPDT Form 'C' CM-332: (2) SPDT Form 'C' |
| Contact Rating: | CM-331/332/333: 3 Amps @ 30 V CM-324/325: 5 Amps @ 30 V |
| Current Draw: | CM-331/332: 40 mA CM-324/325: 60 mA |
| Wireless: | CM-330: Built-In CM-331/332/333: Optional Plug-In |
| Wireless Frequency: | CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless |
| Battery: | CM-330/333: (2) 'AA' alkaline -0ºF to +153º F (-18ºC to +85º C) (2) AA Lithium Batteries (optional) -4ºF to +153º F (-20ºC to +85º C) |
| Battery Life: | Alkaline: 2 years with 100 activations per day |
| Adjustable Operating Range: | CM-331/332: 1"- 28" (25mm-711mm) CM-330/333: 1"-12" (25mm-304mm) CM-324: 1"-30" (25.4mm-762mm) CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror |
| Time Delay: | CM-330/331/332/333: 3-30 Seconds CM-324/325: 1-5 Seconds |
| Operation: | Selectable Fail Safe/Fail Secure |
| Montion Sensing Modes: | CM-331/332/333: Momentary, Momentary with Alarm, Maintained CM-330/324/325: Momentary |
| Relay Operating Modes: | CM-332: Event, Sequence, Security, Toggle CM-331: Event, Toggle CM-330/333/324/325: Event |
| Input: | CM-331/332/333: REX, Door Contact |
| Blue/Green/Red Light Ring: | CM-331/332: Optional |
