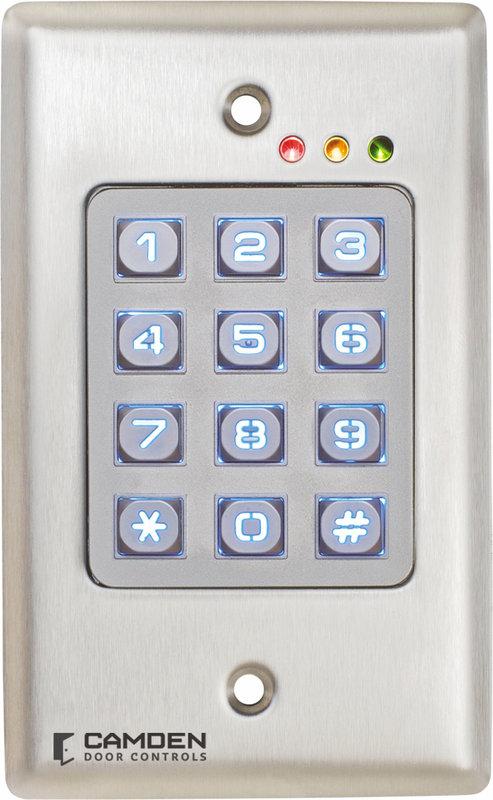

Camden CM-120W-V2 Keypad 999 User Weather Resistant 12/24V
(0 review)

CM-120 Series keypads are North American built and provide Tri-Brid™ stand alone, Wiegand and optional wireless operation! CM120i offers the best performance and value for indoor applications. CM-120wV2 is a vandal and weather resistant model with a metal back-lit keypad.

    This combination does not exist.

    Terms and Conditions

    Voltage: 12/24V AC/DC
    Mounting: Single gang, flush
    (2) #6 machine and tamper proof screws
    Current Draw: 30 mA Standby, 90 mA Max
    Input: 1 x Rex Input / 1 x Door Contact Input
    Contact Type: 2 x Form 'C'
    Contact Rating: 3 AMPS @ 24 VDC
    Capacity: 999 User Codes
    Length: Variable, Up to 8 Digits (10 Million Possible Codes)
    Response Time: 0.3 Seconds
    Time Delay: 1 to 255 Seconds, or Latched
    Temp Range: -40°F to + 122°F (-40°C to +50°C)
    Dimensions: 4-1/2" x 2-3/4" x 3/4"
    (114mm x 70mm x 19mm)
    RF Output: Optional Plug-In Transmitter, 2 Channel
