Camden 2,000 Users, Slim Line, Surface Mount, (1) Form 'C' Relay, 12 VDC
CM-110SK

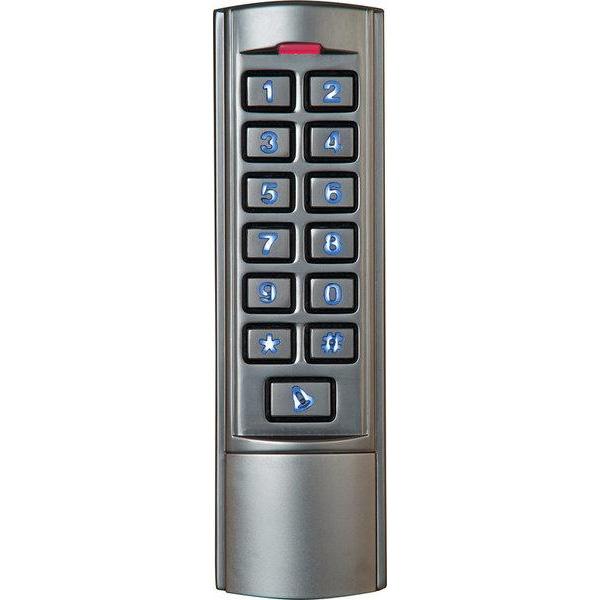

Camden surface mount keypads are rugged, weather and vandal resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, ‘Request to Exit’ inputs, tamper alarm and support up to 2,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors or other electrical device.
Voltage: | CM-550SK: 12 VDC +/- 10% CM-110SK:12 VDC |
Protection: | CM-110SK: IP68 CM-550SK: IP65 |
Current Draw: | CM-110SK: 60 mA CM-550SK: 50 mA |
Contact Type: | CM-110SK: (1) Form ‘C’ CM-550SK: (2) Form 'C' |
Contact Rating: | CM-110SK: 3 A @ 30 VDC CM-550SK: 2 A @ 30 VDC |
Wiegand Interface: | CM-110SK:8 bit burst CM-550SK: NA |
Time Delay: | 0 – 99 seconds |
Alarm Time: | 0 – 3 minutes |
Temp Range: | CM-110SK: -49°F/+140°F (-45°C/+60°C) CM-550SK: -49°F/+113°F (-45°C/+55°C) |
Dimensions: | CM-110SK: 6"H x 1-3/4"W x 1"D (152mm x 45mm x 25mm) CM-550SK: 4-13/16"H x 3-1/8"W x 1-1/16"D (121.67mm x 79.5mm x 26.42mm) |
