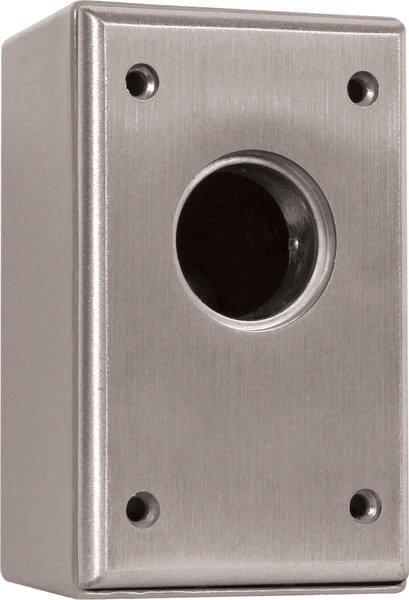

Camden CM-1000 Series Cast Aluminum Surface Mount Key Switch, SPST Momentary, N/O
CM-1000
Camden CM-1000 key switches offer a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or indoor use.
FEATURES
- Supplied with heavy duty diecast surface box
- Accepts standard mortise cylinders (1" - 1-1/4")
- Heavy duty 1/4" thick aluminum plate
- Cylinder sits flush to faceplate
- Tamper proof screws and driver provided
- No set screws required
- Color coded 18 AWG soldered leads
- Heat shrink protective sleeve over contacts
- Complete range of 1 and 2 switch SPST, SPDT and DPDT models, momentary and maintained
- 3 year warranty
SPECIFICATIONS
| Voltage: | 12/24V AC/DC |
| Contact Rating: | 6 A @ 30 VDC |
| Switch Life: | 100,000 cycles |
| Temp Range: | 32°F to 85°F (0°C to +85°C) |
| Std. Finish: | Brushed aluminum |
| Dimensions: | 4-1/2" x 2-3/4" x 2" (114mm x 70mm x 51mm) |
